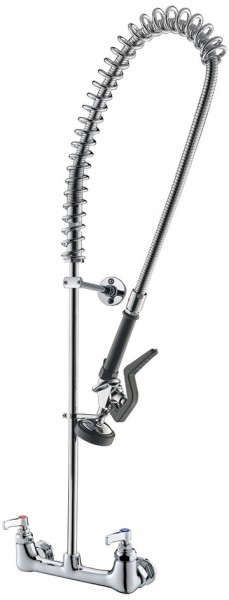

Wall mount kitchen faucet with sprayer factory 5803A

Dishwasher high pressure pre rinse faucet features

High-pressure showers are a category of showers, which have the effect of high-pressure water output. High-pressure showers generally have a device inside. The shower nozzle presses air in. The pressure of the air can be used under the condition of equal water flow. The water flow increases. The high-pressure shower will use laser perforation, 16-hole nozzles, and a new design with special boost function, which has the effect of saving water and greater water pressure.

The high-pressure shower has a beautiful appearance, chrome plating on the surface, and better anti-rust performance. It can freely stretch the tube to various directions and freely adjust the height. It is used for pre-washing and washing dishes in commercial kitchens such as hotels, restaurants, schools, factories, etc. Dishwasher is used in combination, and high-pressure washing is carried out first, which greatly reduces the number of water changes and cleaning time of the dishwashing butterfly machine, saving time, water, electricity, and labor. High-pressure flushing and thawing of quenched products in supermarkets; supporting high-pressure flushing of medical equipment and supplies with water pressure of 1500 kpa and temperature of 300°C, high-pressure flushing of factory equipment and products.

Material: 59 copper
Finish: chrome plated
Cartridge: brass
Spray: brass+plastic, 5.37l/minute,
Hose: 304stainless steel, afford 140kgs pulling power, -15-100 degree, 3.5mpa water pressure.

Product Description:
Model: ZBS-5803A

Place of Origin: Guangdong·Kaiping Shuikou

Installation method: wall type installation
Body: Brass
Spool: Copper screw spool (with check valve)
Handle: zinc alloy
Straight pipe: Φ16*20″(510mm) brass chrome-plated pole
Sprinkler head/shower head: copper + plastic (spray gun head flow rate: 5.37 liters/minute) shower faucet conforms to the ANSI/ASTM F2324-03 international standard.
Spring: 25″(640mm) chrome-plated stainless steel high elastic vertical spring
Wall bracket: 12″ (305mm) wall bracket (length can be cut according to installation needs);
Hose/throat: Φ18*38”(965)mm outer skin 304 stainless steel double buckle anti-falling, can withstand 100-140kg pulling force, inner tube EPDM non-toxic plastic, temperature range -15-100 degrees, outer braided 304 steel wire, can be Withstand 3.5mpa water pressure.
Features:
Supply method: spot (available within 500 sets)
Wall type double hole high pressure shower faucet
Formed with national standard brass forging
Five-layer surface plating treatment, long-lasting bright new
Using screw valve core and using two rubber rings to seal the water, the life of the valve core is five times that of the ordinary valve core
With check valve to prevent backflow.
Use 304 stainless steel hose, can withstand 35mpa water pressure, not easy to burst
The shower nozzle has a built-in stainless steel 304 spring (don’t worry about the switch not popping out after long time use)

Product design eccentric base (the center distance of 196mm-212mm can be adjusted to solve the trouble of irregular opening and unable to install)

Environmentally-friendly plastic packaging (convenient to disassemble and check, break the trouble of re-sending to the manufacturer after disassembling the traditional packaging)

The installation of the first domestic product does not require water-filling tape, which greatly saves installation costs.

The only product with a patent certificate in China (Patent No.: ZL 2014 3 0452336.2)

The only product in China with a packaging patent certificate (Patent No.: ZL 2014 3 0293292.3)

package:
Packaging: inner and outer neutral yellow kraft cardboard + suction cup plastic packaging.
Packing list: a complete set of the product, and an accessory package (2 commonly used washers, 2 wall plastic pellets, 1 2.5 hex key, 2 m5 hexagon socket screws, 2 5 centimetric self-tapping screws) Customer installation and replacement when needed, please keep it properly, an assembly manual, and written instructions for installation.
Single set net weight: 5.06kg/set
Single set with packaging weight: 5.08kg/set
One piece gross weight: 30.48kg/6 sets
A set of outer box size: 680*320*8 (mm)
One piece/6 sets Outer box size: 680*320*500 (mm)
