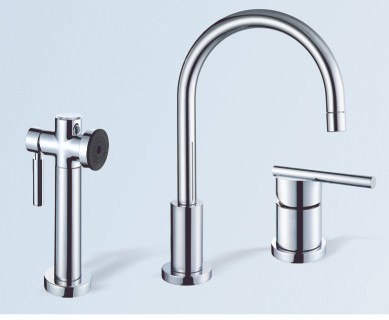

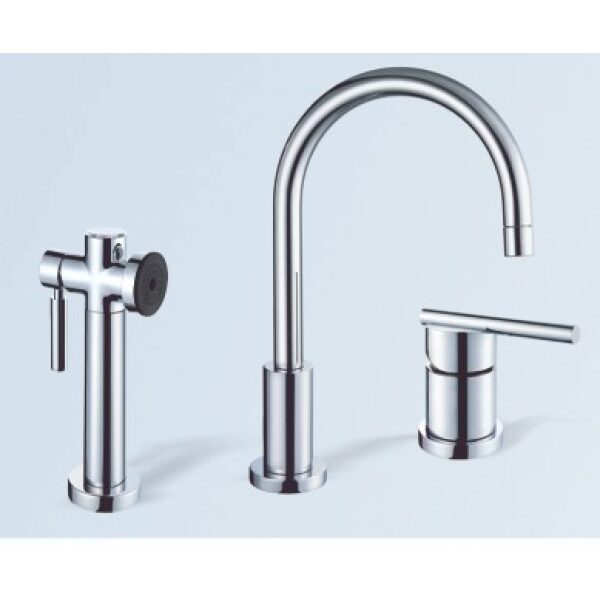

Single Lever Mixer With Rinsing Spray

Code: 068231
Range: Dornbracht Tara
SINGLE LEVER MIXER WITH RINSING SPRAY
Material: Copper Brass
Finish: Nickel+Chrome Plated
With or without pop-up waste
Function: Double Lever Handle
Projection 218mm
Total height 210mm
Height to aerator/spout outlet 186mm
304 stainless steel aerator
Ceramic disc cartridge
Hot/cold water hose.
2.5KG

Single lever mixer with rinsing spray set

235 mm projection
Pivotable spout 360°
Hole diameter rinsing spray 32 mm
Height of mixer 400 mm
Single-lever mixer hole diameter 35 mm
M 18 x 1 aerator – female thread
Cartridge with ceramic discs
3x M 10 x 1 x 420 mm high-pressure hose

SINGLE LEVER MIXER WITH RINSING SPRAY
Code: 068231
Range: Dornbracht Tara
Material: Copper Brass
Finish: Nickel+Chrome Plated
With or without pop-up waste
Function: Double Lever Handle
Projection 218mm
Total height 210mm
Height to aerator/spout outlet 186mm
304 stainless steel aerator
Ceramic disc cartridge
Hot/cold water hose.
2.5KG

Single lever mixer with rinsing spray set

235 mm projection
Pivotable spout 360°
Hole diameter rinsing spray 32 mm
Height of mixer 400 mm
Single-lever mixer hole diameter 35 mm
M 18 x 1 aerator – female thread
Cartridge with ceramic discs
3x M 10 x 1 x 420 mm high-pressure hose
Automatic spout/shower diverter
Attachment tube with 185 mm fitting
1750 mm metal shower hose for rinsing spray set
Spray face with an anti-scaling system
Max. flow single-lever mixer max. 7 l/min at 3 bar flow pressure
Max. flow rinsing spray max. 6 l/min at 3 bar flow pressure
