Deck Mounted Commercial Kitchen Tapware - China Manufacturer

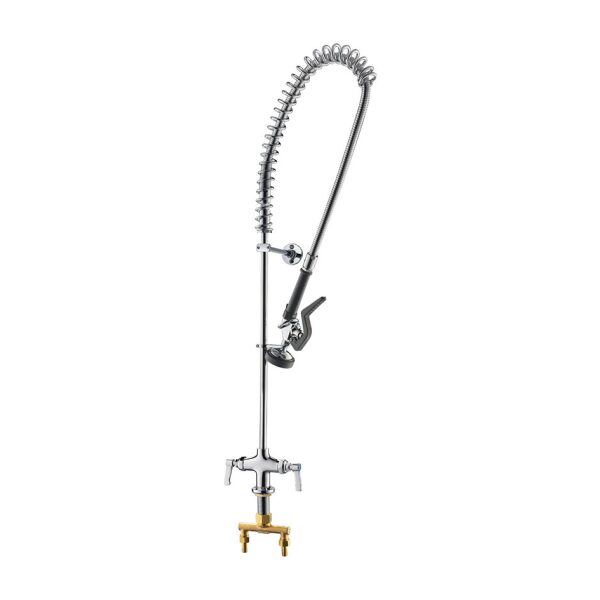

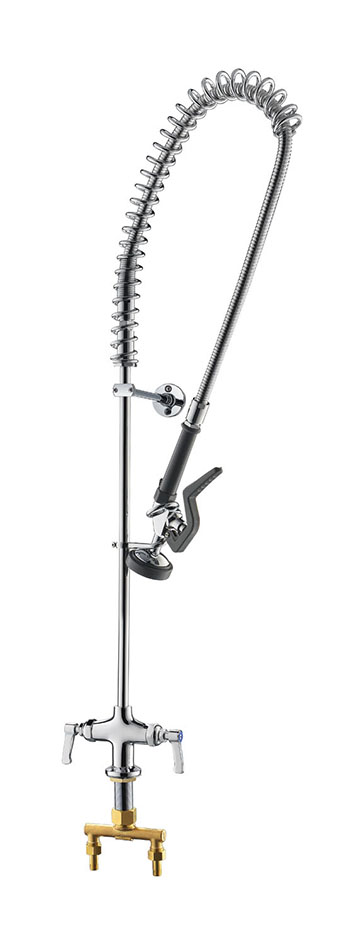

Deck Mounted Commercial Kitchen Tapware
Material: 59 copper
Finish: chrome plated
Cartridge: brass
Spray: brass + plastic, 5.37l/minute,
Hose: 304stainless steel, afford 140kgs pulling power, -15-100 degree, 3.5mpa water pressure.
Product Description:
Model: ZBS-5801A
Place of Origin: Guangdong ·Kaiping Shuikou
Installation method: on-stage installation
Body: Brass
Spool: Copper screw spool (with check valve)
Handle: zinc alloy
Straight pipe: Φ16*20″(510mm) brass chrome-plated pole
Sprinkler head/shower head: copper + plastic (spray gun head flow rate: 5.37 liters/minute) shower faucet conforms to the ANSI/ASTM F2324-03 international standard.
Spring: 25″(640mm) chrome-plated stainless steel high elastic vertical spring
Wall bracket: 12″ (305mm) wall bracket (length can be cut according to installation needs);
Hose/throat: Φ18*38”(965)mm outer skin 304 stainless steel double buckle anti-falling, can withstand 100-140kg pulling force, inner tube EPDM non-toxic plastic, temperature range -15-100 degrees, outer braided 304 steel wire, can be Withstand 3.5mpa water pressure.

Deck Mounted Commercial Kitchen Tapware
Dishwasher, sink basin, worktop star basin, kitchen equipment and other supporting use
High-pressure washing and thawing of super-cooled products in supermarkets;
High-pressure washing of medical equipment and supplies, high-pressure washing of factory equipment and products;
Supply method: spot (available within 500 sets)
Countertop single-hole high-pressure shower faucet
Formed with national standard brass forging
Five-layer surface plating treatment, long-lasting bright new
Using a screw valve core and using two rubber rings to seal the water, the life of the valve core is five times that of the ordinary valve core
With check valve to prevent backflow.
Use 304 stainless steel hose, can withstand 35mpa water pressure, not easy to burst
The shower nozzle has a built-in stainless steel 304 spring (don’t worry about the switch not popping out after a long time of use)
The base of the product is designed with apron grooves, so there is no need to worry about water droplets on the table surface.
Environmentally-friendly plastic packaging (convenient to disassemble and check, break the trouble of re-sending to the manufacturer after disassembling the traditional packaging)
The installation of the first domestic product does not require water-filling tape, which greatly saves installation costs.
The only product with a patent certificate in China (Patent No.: ZL 2014 3 0231615.6)

The only product in China with a packaging patent certificate (Patent No.: ZL 2014 3 0293292.3)
Packaging: inner and outer neutral yellow kraft cardboard + suction cup plastic packaging.
Packing list: a complete set of the product, and an accessory package (2 commonly used washers, 2 wall plastic pellets, 1 2.5 hex key, 2 m5 hexagon socket screws, 2 5 centimetric self-tapping screws) Customer installation and replacement when needed, please keep it properly, an assembly manual, and written instructions for installation.
Single set net weight: 5.06kg/set
Single set with packaging weight: 5.08kg/set
One-piece gross weight: 30.48kg/6 sets
A set of outer box sizes: 680*320*8 (mm)
One piece/6 sets Outer box size: 680*320*500 (mm)
